Creep analysis of fan structure

During the development of a new fan-concept Alvelid Engineering was involved in the mechanical simulations, verifying the mechanical integrity of the fan structure in terms of e.g.:

  • Static strength of the structure (e.g. rotor arms)
  • Dynamic behavior of the system due to for example unbalance
  • Creep strength in rotor blades for the designed service life (creep analysis)
  • Specification of bolt torque to ensure sufficient pre stress during service life (creep analysis)

  The core parts were made of glass fiber reinforced polymers were creep deformations can be of importance, especially at higher temperatures and high humidity, after long term operation. Several designs were evaluated for a number of load cases. A Norton creep model was fitted to the experimental data available in order to predict the inelastic deformations.

  By introducing simulations early on in the project, weak spots could be identified and redesigns were made in order to avoid numerous prototypes or possible failure in field.

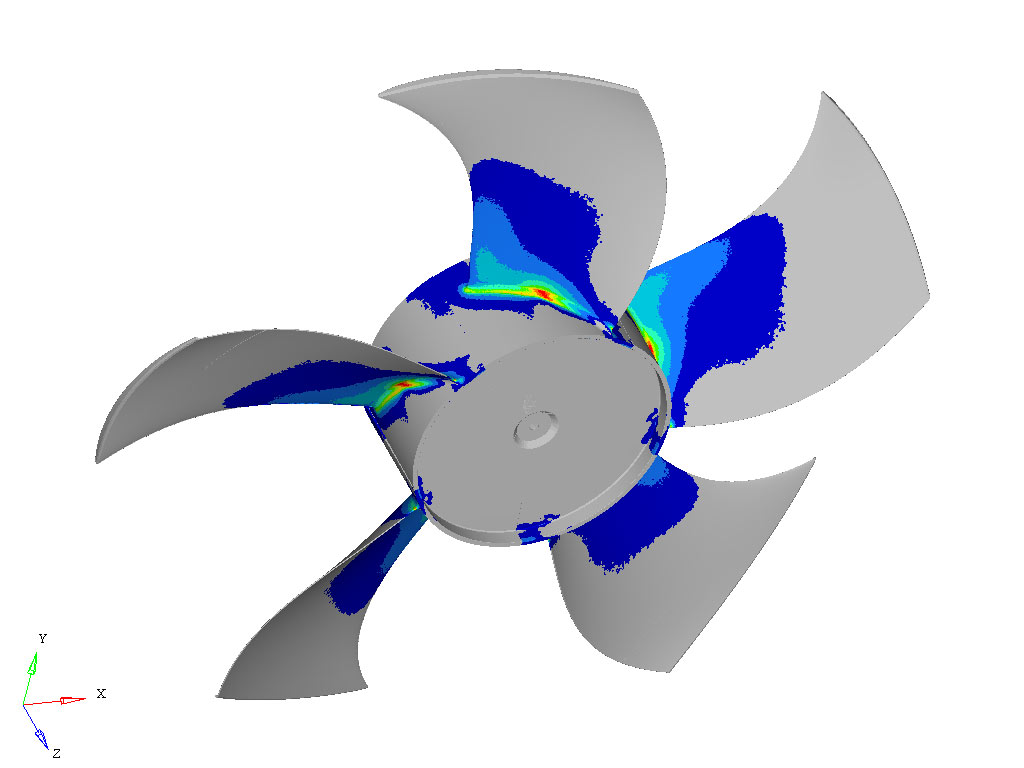

Total mechanical strains in fanFirst blade eigenmode shape
